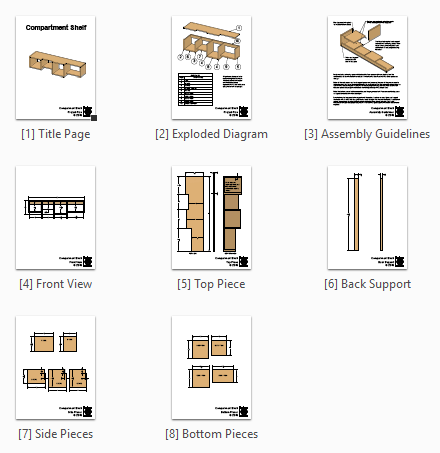

Based on my “Wall Mounted Compartment Shelf“ project video, this 8-page PDF provides detailed dimensioned drawings of all the pieces needed to build this shelf. All dimensions are provided in inches. This provides basic dimensions, but sizes may vary as you account for errors or adjust for your choice of materials or joinery methods.
